Performance Note: Load, stiffness, flow rate, and moment values are based on testing at 60 PSI supply pressure. Actual performance may vary depending on shaft quality, mounting method, air supply stability, and application conditions.
Title | Specification |
Size | 50 mm ID |

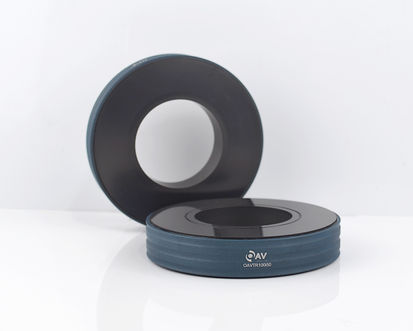

Part Number | OAVTR100i50 |
Housing Material/Finish | 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize |
Input Pressure | 20 – 80 PSI (0.14 – 0.55 MPa) |
Porous Material | Carbon |
Pressure Port Threads | M5 x 0.8 |
Lifetime | Infinite |
Radial Load Capacity | 190.8 N (42.9 lbs) |
Thrust Load Capacity | 862.1 N (193.8 lbs) |
Radial Stiffness | 24 N/μm (0.14 lbs/μin) |
Pitch Moment Max | 5.2 N-m (46 lbs-in) |
Bearing Inside Diameter (ID) | 50.018 mm + .005/-.000 |
Bearing Outside Diameter (OD) | 99.49 mm + .13/-.00 |
Bearing Length | 19.6 mm |
Bearing Weight | 266.3 g |
Recommended Shaft Outside Diameter (OD) | 50 mm - .02 |
Flow Rate | 28.5 SCFH (13.5 NLPM) |
Housing Bore Size Light Press Fit Method | 99.525 mm + .000/-.035 |
recommended with
Shaft
Part # OAV50MMSHAFT
Our standard shafts have a surface finish better than 16 RMS and .0007 tolerance.
Face Collar
Part # C50TB1 or C50TB2
Face collars are an option for one or each face and prevents the shaft or bushing from moving side to side.
O-Rings
The O-Rings meet MIL-R-83248C and ASTM D2000/SAE J200. They offer excellent resistance to temperature ranges from -15°F to +400°F. A75 hardness. Color is black.
.jpg)
Mounting Block
Aluminum Mounting Blocks for imperial and metric frictionless air bushings. Made from aircraft quality aluminum and anodized with Mil spec. for ultimate quality.
